沙金巖金處理方案:每小時150立方處理量振動篩淘金設備

【設備簡介】

本套淘金設備為振動篩+振動溜槽組合式淘金設備，是我公司根據用戶實際需求進行獨立設計制作而成，具有處理量大、回收率高，設備保養維修方便等特點。

Introduction

This set of mahine is including vibrating screen and gold shaking sluice,design and manufactured by customer’s requirement with high capacity and recovery,convenient maintenance etc.

【流程概述】

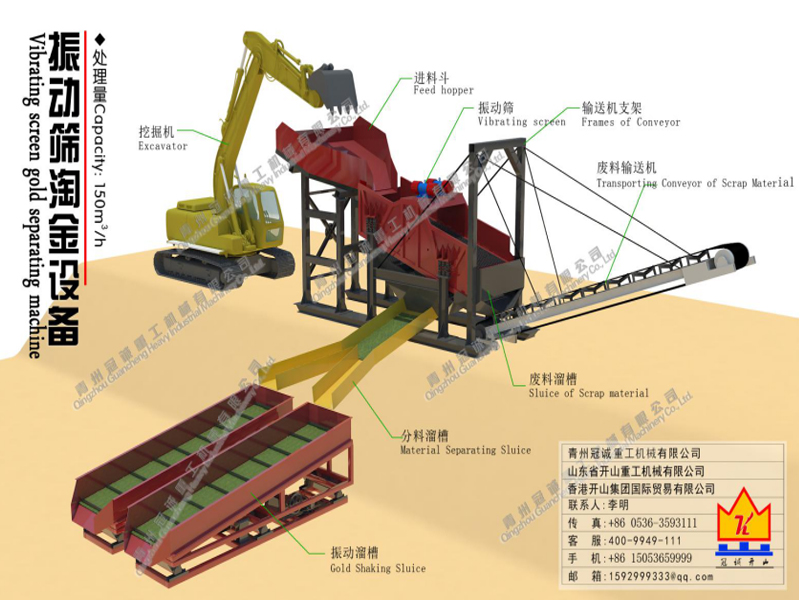

原料通過挖掘機送入上料斗中，通過高壓水沖洗后進入振動篩內進行篩選分級為細料、粗料與廢料三種規格，其中粗料與廢料直接通過廢料輸送機輸送至廢料區域；

細料通過分料溜槽進入兩臺振動溜槽進行回收后，尾料排入廢料池中。

Technological process

The raw material feeding by excavator,then washed by high pressure water and getting into vibrating screen to be separated into 3 sizes,the samller,small&big size,the big and scrap material are getting rid from transporting conveyor.

The smaller and small size getting into gold shaking sluice to recover and scrap material getting rid to the waste pool.

【技術參數】

名稱 Prodution name		規格 Specification	數量 Quantity	功率 Power /Kw	備注
振動篩	進料斗 Feed hopper	2800*2700mm	1套	3KW
	振動篩 Vibrating screen	1500*3500mm 上層篩：?25mm提油桿 The upward screen:?25mm sucker rod 下層篩：?20mm聚氨酯篩網 The downward screen:?20mm Polyurethane mesh
	支架 Frame of vibrating screen	振動篩：20#工字鋼 Vibrate screen:20# Double T steel 進料斗：15#方管 Feed hopper:15# square pipe
	浮體 The floating frame	16#槽鋼、5mm鐵板 16#U steel,5mm thick iron plate
	分料溜槽 Material separating sluice	鋪設淘金氈 With gold carpet
廢料輸送機 Transporting conveyor of scrap material		皮帶寬度：600mm，桿長6米 Belt width:600mm,Pole length:6m	1臺	3KW	電動滾筒
振動溜槽 Gold shaking sluice		1500*4500mm	2臺	3KW*2
水泵 Water pump		7.5KW	1臺	7.5KW
配電柜 Electricity Cabint			1套	-
總用電功率		19.5KW
