巖金礦提取方案每小時15噸處理量

流程概述：

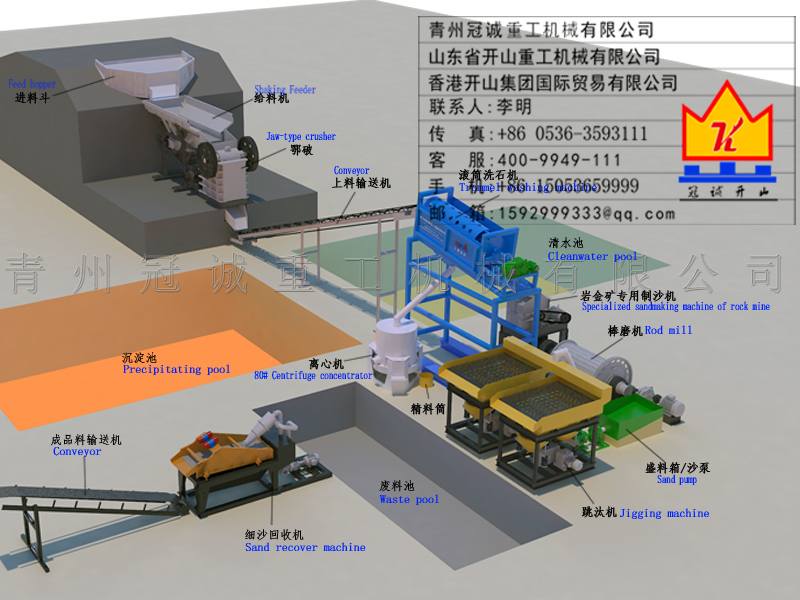

原料通過工程車輛送入進料斗中，然后通過振動給料機送入一臺鄂式破碎機內進行破碎，破碎后的物料通過上料輸送機均勻送入滾筒式洗石機內進行清洗篩分為粗料與細料兩種規格。

6mm以下細料進入一臺80#選金離心機進行精選，廢料排入廢料池中；6mm以上粗料進入一臺巖金礦專用制沙機內進行破碎制沙，然后進入一臺棒磨機進行棒磨，棒磨后的細料排入盛料箱內通過沙泵打入2臺跳汰機內進行篩選回收，廢料排入廢料池中。

廢料池中的細沙通過沙泵進入一臺細沙回收機內進行脫水回收，然后通過成品料輸送機輸送至指定區域。

Technological Process

Raw material from feed hopper getting into shaking feeder,then move into Jaw-type crusher to be crushed while going through trommel washing machine to be separated into 2siezes≦6mm or≧6mm

The smaller size materila(≤6mm) flow into 80#centrifugal concentrator for further separation,the scap material washed to waste pool.The bigger size material(≧6mm)then go through specialized sandmaking machine of rock mine to be crushed into sands to be collected,the others material getting into ball mill then wahed into 2sets of Jigging machine from sand pump for further separation,the material getting rid to the waste pool.

The sands in the waste pool can be recovered from sand recover machine getting rid of the water,then shipped by conveyor to destination.

技術參數：

名稱 Productions	規格 Model&Size	功率 Power	數量 Quantity
進料斗 Feed hopper	3500*2980，10mm厚鋼板steel，12#槽鋼U-steel		1set
給料機Feeder	振動給料機 shaking feeder	15	1set
鄂式破碎機Jaw crusher	2500*400mm	15	1set
上料輸送機conveyor	皮帶寬度600，桿長16米 Belt width600,length of the Pole 16m	7.5	1set
滾筒洗石機 Trommel washing machine	?1000，長度3000mm Diameter1000,length3000mm	7.5	1set
巖金礦專用制沙機 Specialized sandmaking machine of rock mine	800*800mm	75	1set
棒磨機 Rod mill	2100*3000mm	180	1set
跳汰機 Jigging machine	JT5-2	7.5*2	1set
離心機 Centrifugal concentrator	80#手動排礦	11	1set
6S搖床 shaking table	300016201360mm	2.2*4	1set
細沙回收機 Recovery machine		30.75	1set
成品料輸送機 Conveyor	皮帶寬度600，桿長11500mm Belt width 600,Pole length11500mm	5.5	1set
沙泵 Sand pump	4inch	30	1set
水泵 Water pump		7.5	1set
水泵 Water pump		3	1set
離心泵 Centrifugl pump		5.5	1set
離心泵管道 Pipe of centrifugal pump			30m
水泵管道 Pipe of water pump			3pcs
離心機進料管道 Feeder of Centrifugal concentrator	鋼絲軟管 Wire braided hose		10m
配電柜 Distribution cabinet			1set
發電機組 Generator unit	200KW		1set
發電機組 Generator unit	300KW		1set
離心泵機組 Centrifugal pump	柴油機+離心泵 Diesel motor and centrifugal pump 流量Water flow：200m3/h 揚程Discharging distance：282m 不含管道		1set
離心泵機組管道 Pipe for centrifugal pump	鐵制或鋼絲管道 Iron or wire braided hose		4000m
總功率Total power	411.55KW
