每小時原礦200-300噸處理量淘金設備清單

淘金設備

砂金機械,選金礦機械,砂金選礦提取設備,砂金選礦機械

砂金設備每小時原礦200-300噸處理量淘金設備清單

6mm以下處理量：80-100T/H

回收率:明金、單晶體金90%以上

Raw material capactiy 200-300tph gold separating plant

Material size below 6mm capacity:80-100tph

Recovery over 90% to visible and single crystal gold

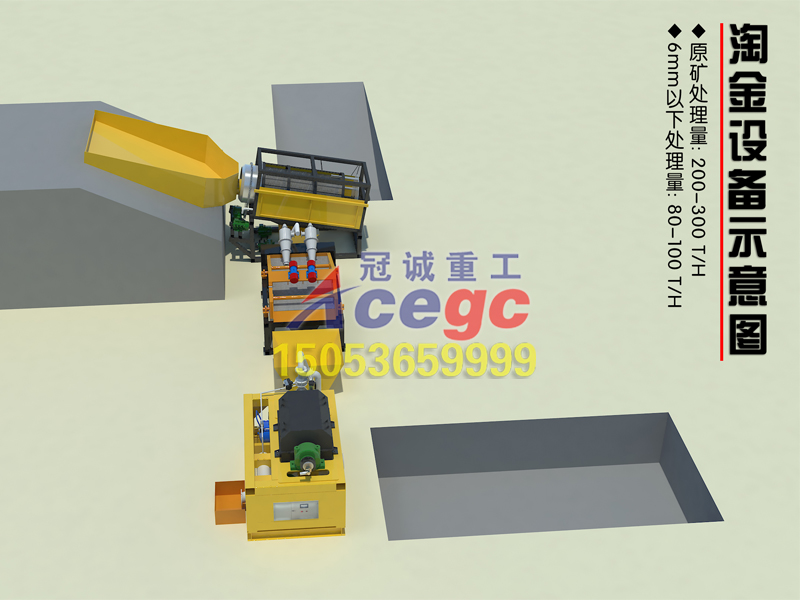

【選砂金機械流程概述】

原料通過工程車輛送入振動料倉，通過底部振動給料機均勻給入上料輸送機，然后進入多鉸刀絞洗篩內進行篩選分級為：粗料與細料兩種規格，其中粗料排入一條固定式淘金氈溜槽內進行收尾，廢料排入廢料池中；

細料排入料箱內通過一臺4寸沙泵打入一臺1200#砂金機械臥式全自動排礦離心機內進行精選，精選出的精料自動排入精料箱內，廢料排入廢料池中。

Technical process

Raw material from excavator into vibrating feed hopper then well-distributed transported by conveyor to reamers trommel screen to be classified into big size＞6mm and small size≤6mm,the one in size＞6mm into fixed sluice to get the gold,the scrap into scrap material;

The small getting into 1set 1200#horizontal gold concentrator from 1set 4inch sand pump,the concentrate into concentrate box,the scrap into scrap pool.

【選砂金機械技術參數】
Detail parameter

名稱 Production	規格 Specification	數量 Quantity	功率 Power	單價 Unit price	總價 Total price	備注 Remark
振動料倉 Vibrating feed hopper	2200*3000	1套	0.38			含振動給料機 Including shaking feeder
上料輸送機 Transport conveyor	皮帶寬度600mm，桿長約9米 Belt width600mm,pole length about 9m	1套	5.5
砂金機械滾筒篩 Reamer trommel screen	內徑1.3米，外徑1.6米，凈篩網長度3米，內含多條鉸刀從頭部覆蓋至尾部，鏈條驅動 Inner dia.:1.3m,outer dia.:1.6m, Screen mesh 3m,including reamers,driven by chain	1套	7.5
砂金機械固定溜槽 Fixed sluice with carpet	1000*4000	1套	-			含收金草，品牌：日本三菱 Including gold carpet,brand Mitsubishi
料箱&沙泵 Mineral box and sand pump	4寸沙泵 4inch sand pump	1套	11
砂金設備離心機 Gold concentrator	1200#臥式全自動排礦 Horizontal automatic discharge	1套	21.5			PLC電腦全自動控制 Plc control automatic discharge
離心泵 Centrifugal pump	5.5KW	1套	5.5
潛水泵 Submerged pump	5.5KW	1臺	5.5
配電箱 Electric box		1套	-
總功率 Total power	56.88KW
