砂金設備處理量5-10噸/小時球磨車

移動球磨淘金車

一、【產品介紹】

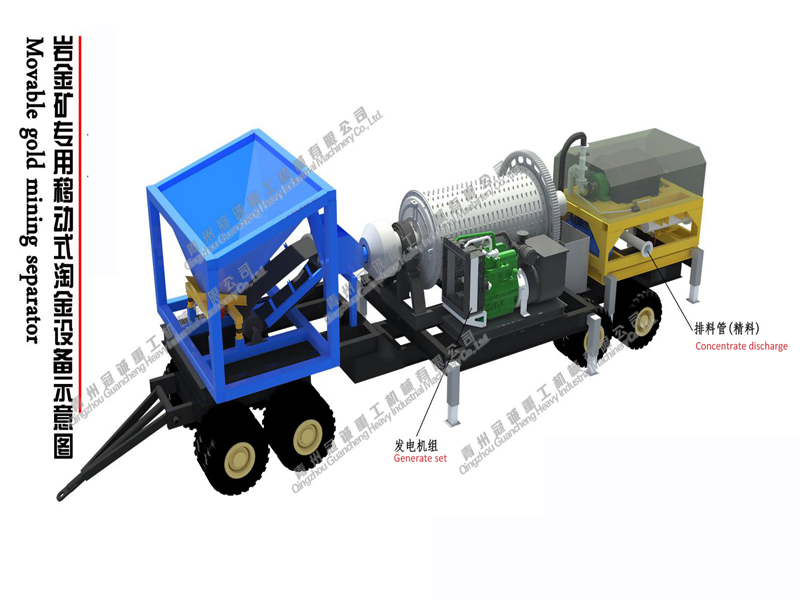

1.Base plate design from heavy trailer with driving bar and direction system,generator set,it can be easiler moved or transported.

2.The shaking feeder under feed hopper to prevent clogging of material

3. The concentrator sysytem we use horizontal auto discharge concentrator,separating and easy to operate and discharging auto controlled with PLC druing which 2nd time the scrap material’s recovery by amalgamating board slucie.(The horizontal type gold concentrator instead of vertical type which can be working only on ground level provide good performance as a unit of the car)

二、【流程概述】

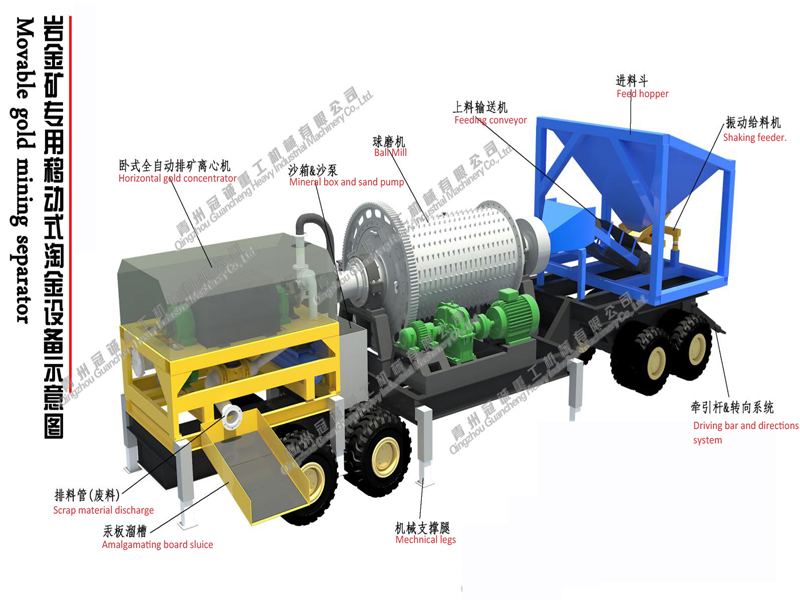

原料通過工程車輛送入進料斗中，通過振動給料機均勻給入上料輸送機中，然后送入球磨機內時行球磨，球磨后的物料排入沙箱內，通過沙泵送入離心機內進行精選，精選后的精料會自動排出，廢料通過一條汞板溜槽收尾后，廢料排入廢料區域。

Technical process

The material getting into feed hopper by excavator or other machines,the the shaking feeder can make material well distributed onto conveyor and then be transporting into ball mill,the getting into horizontal auto discharge concentrator by sand pump in sand box,then concentrate get and scrap material into amalgamating board sluice to be recovered

三、【技術參數】

Detail parameter

處理量：5-10噸/小時

Capacity：5-10ton/hour

外型尺寸：17.5*3*4.2米(長*寬*高）

Outlet size:17.5*3*4.2m（L*W*H）

底盤長度：17.5m

Length of base plate：17.5m

球磨機進料粒度：0-25mm

Ball mill feeding size：0-25mm

球磨機型號：1500*4500 處理量5-11T/h 功率：110KW

Ball mill:1500*4500 capacity:5-11 power:110KW
