每小時30-50噸處理量巖金礦處理設備清單

巖金礦處理方案

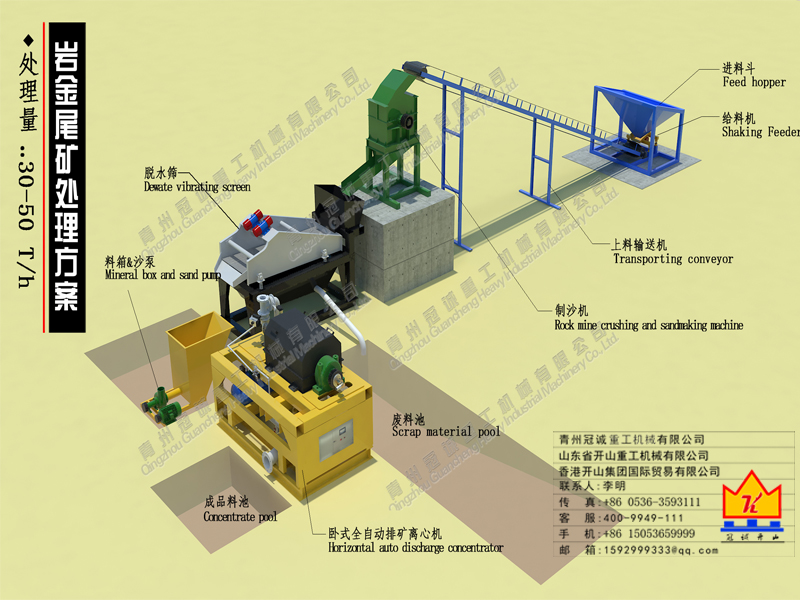

【砂金設備流程概述】

原料通過工程車輛送入進料斗，通過振動給料機均勻把料送入上料輸送機，通過輸送機送入制沙機內進行破碎，破碎后的物料進入一臺脫水篩脫水篩進入脫水，之后排入料箱內由沙泵打入沙金選礦設備一臺臥式全自動排礦離心機內進行精選，精選出的精料會自動排出至成品料池內，廢料自動排入廢料池。

Technical process

The raw material getting into feed hopper then well distributed with shaking feeder to be transported by conveyor into specialized rock mine crushing and sandmaking machine to be crushed,then material into dewater vibrating screen to get rid of unclean water then to be send to horizontal auto discharge concentrator by sand pump to get concentrate.

【砂金設備配置技術參數】

Detail parameter

沙金提取設備名稱 Production Name	規格 Specification	數量 Quantity	功率 Power	備注 Remark
進料斗 Feed hopper	2000*3000mm	1 set	0.55	包含一臺振動給料機 Including shaking feeder
上料輸送機 Transporting conveyor	皮帶寬度600mm Belt width600mm	1pcs	5.5
巖金礦專用制沙機 Rock mine crushing and sandmaking machine	600*800mm Motor:37kw 37kw電機	1set	37	錘式破碎機 Hammer crusher
制沙機底座 Base plate of rock mine crushing and sandmaking machine		1pcs	-
脫水篩 Dewater vibrating screen		1set	1.5
料箱&沙泵 Mineral box and sand pump	4inch	1set	15
離心機 Gold concentrator	80#horizontal auto discharge type	1set	10.5	PLC自動控制 PLC control
離心泵 Centrifugal pump		1set	5.5
配電箱 Electric box		1set	-
總功率 Total power	75.55KW

【沙金提取設備,砂金提取設備操作說明】

一、開關機：

1、開啟順序：離心機——沙泵——脫水篩——制沙機——上料輸送機——進料斗給料機

2、關機順序：進料斗給料機——上料輸送機——制沙機——脫水篩——沙泵——離心機

Operation instruction

Turn on:Horizontal auto discharge concentrator-sand pump-dewater vibrating screen-rock mine crushing and sandmaking machine-transporting conveyor-shaking feeder
Turn off：Shaking feeder——transporting conveyor——rock mine crushing and sandmaking machine ——dewater vibrating screen——sand pump——Horizontal auto discharge concentrator
