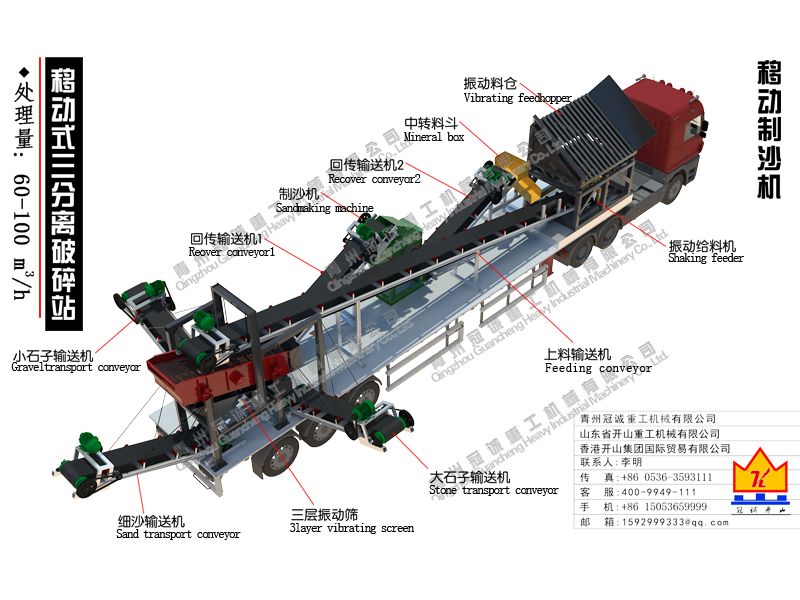

每小時60-100立方處理量移動式三分離破碎站

移動破碎站

【設備簡介】
本套移動破碎站為移動式三分離破碎站，處理量為每小時60-100立方，本移動破碎站是青州冠誠重工機械有限公司獨立設計制作而成，直接采用17.5米半掛車底盤改裝制作，基優勢如下：
1、移動靈活方便，可以直接使用半掛車頭直接牽引，另附帶了一套牽引轉向系統，可以使用其它牽引車輛牽引；
2、上料系統采用振動料倉+振動給料機上料方式，振動料倉上層篦子可以首先篩選出較大的不合格石塊，有效減少料斗及振動篩磨損，提高了工作效率；振動給料機可以防止堵料，并且保障均勻連續給料；
3、振動篩采用三層篩網，上層為25#耐磨圓鋼，二層，三層為聚氨酯耐磨篩網。
Introduction
This movable crushing and screening station is to classify the material into 3sizes and capacity is 60-100m3/h,it’s designed by Qingzhou Guancheng heavy industrial machinery co.,ltd,base plate made from 17.5m semi trailer base plate,the advantage:
1.it can be moved or drived by trailer engine easily,and another set of driving and directions system to be additional,it can be driven by another car or trailer.
2. The vibrating feed hopper and shaking feeder ,the screen of vibrating feed hopper can prevent the big stone from getting into the machine,it can reduce the abrasion,make it work more efficiently,the shaking feeder keep it off clogging of material and well distributed to be transported.
3.Vibrating screen using 2layer mesh,the first layer is using 25# round steel,the 2nd layer with polyurethane screen mesh.

【技術參數】
Detail parameter

砂金設備,砂金機械,沙金選礦設備,砂金設備配置,沙金提取設備,砂金提取設備具體參數

名稱 Production Name	規格 Specification	數量 Quantity	功率 Power	備注 Remark
牽引系統 Driving system	□半掛車頭 Trailer engine □附帶牽引轉向系統 The additional driving and directions system
底盤 Base plate	17.5米半掛車底盤 Made from 17.5m semi trailer	1套	-
振動料倉 Vibrating feed hopper	3000*2000mm	1套	7.5	帶振動給料機 Including the shaking feeder
振動篩 Vibrating screen	1200*3600mm 三層篩 3layer screen mesh 上層25#耐磨圓鋼 1st floor 25# steel 中層聚氨酯耐磨篩網 2nd floor Polyurethane mesh 下層聚氨酯耐磨篩網 3rd Polyurethane mesh	1套	7.5
上料輸送機 Feeding conveyor	皮帶寬度600mm，桿長16m Belt width600m,length of pole 16m	1套	11	振動篩 Transporting materials to vibrating screen
回傳輸送機1 The recover conveyor	皮帶寬度600mm，桿長6m Belt width600m,length of pole 6m	1套	5.5	制沙機 Transporting materials to sandmaking machine
回傳輸送機2 The recover conveyor2	皮帶寬度600mm，桿長4.5m Belt width600m,length of pole 4.5m	1套	5.5	回傳 Transporting material s to recover
大石子輸送機 Stone transport conveyor	皮帶寬度600mm，桿長4m Belt width600m,length of pole 4m	1套	3
小石子輸送機 Gravel transport conveyor	皮帶寬度600mm，桿長4m Belt width600m,length of pole 4m	1套	3
細沙輸送機 Sand transport conveyor	皮帶寬度600mm，桿長4m Belt width600m,length of pole 4m	1套	3
制沙機 Sandmaking machine	800*800mm	1套	55
配電柜 Electric cabint	開關品牌：德力西 Switch Brand:Delixi	1套		含至設備電機線，不含電纜線 Including the wire to machine excluding the cable
總用電功率 Total power	101KW
