名稱
Production

規格參數
Specification

數量
Quantity

功率
Power

備注
Remark

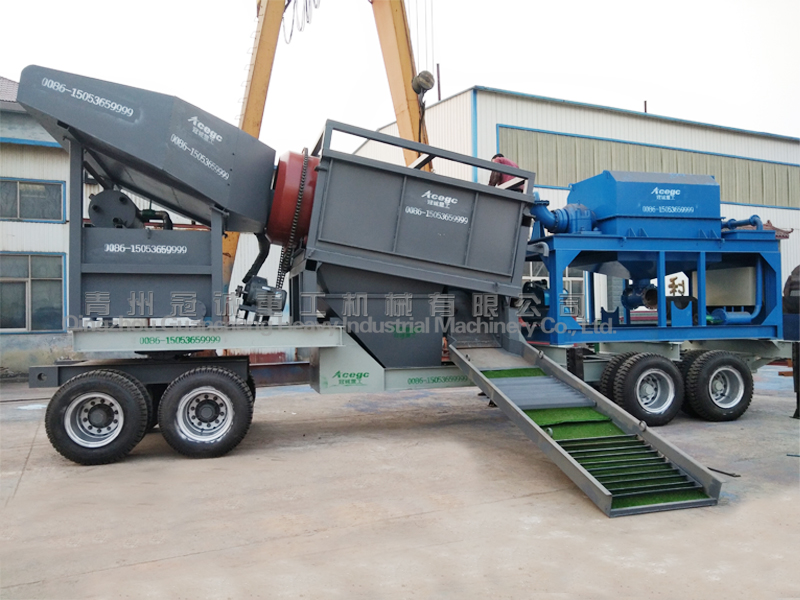

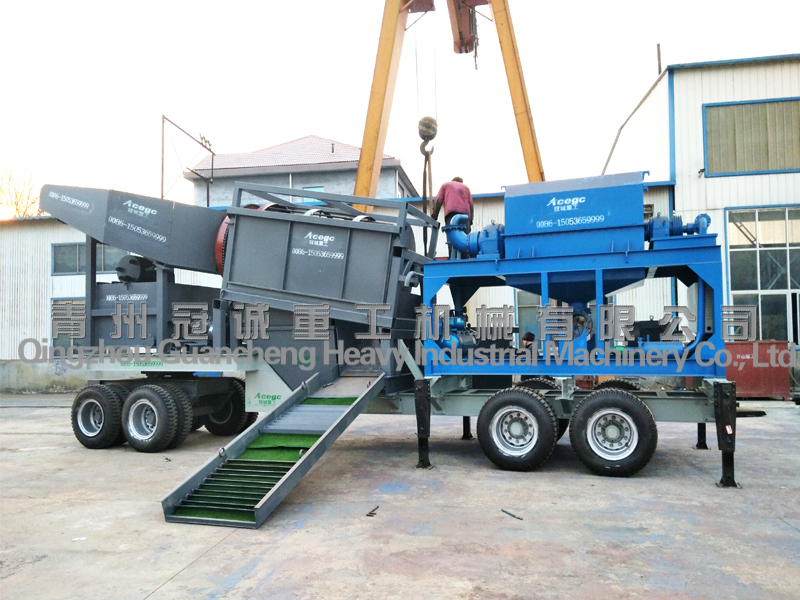

砂金設備移動式篩分離心選礦一體設備
Portable trommel screen centrifugal gold separating machine

進料斗（Feed hopper）：3.4*2.85m
滾筒篩（Trommel screen）：內徑1.3米，外徑1.6米，凈篩網長度1.8米，內含多條鉸刀,鏈條驅動
Inner diameter:1.3m,outer diameter:1.6m,screen mesh:1.8m,with reamers and driving with chain

砂金機械離心機：1200#臥式全自動排礦
Gold concentrator:1200# horizontal automatic discharge type
底盤長度( The chasis)：9.9m
輪胎：4軸16條輪胎 900-2#
Tyre:4axles and 16 tyre 900-2#
沙泵&料箱(Sand pump and mineral box)：4inch
離心水泵(Centrifugal Pump)：5.5KW 1pcs
分水器：帶閥門
Water separating:with valve

1臺(set)

45.5

本沙金機械含機器本身使用管道，不含外部水源至機器管道
There are pipe only for this set of machine use excluding pipes from water sources to the machine.

配電柜
Electric box

1套

-

含至設備電機線，不含電纜線
Including the electric wire to machine,excluding the cable.

用電功率
Power

71.5KW

規格參數
Specification

數量
Quantity

功率
Power

潛水泵
submerged
pump

5.5KW

2臺(set)

11

柴油泵
Diesel pump

柴油機：6100#   泵：6寸
Diesel engine：6100# Pump:6inch

1臺(set)

-

中專離心水泵
Centrifugal pump

15KW

1臺(set)

15

潛水泵水帶
Water hose for submerged pump

厚消防水帶(fire fighting hose)  20米/盤(20m/roll)

6盤

-

柴油泵管道
Pipe for diesel pump

HDPE管帶接頭(HDPE pipe and joint)

400m

-

中轉離心泵管道
Pipe for centrifugal pump

HDPE管帶接頭(HDPE pipe and joint)

100m

-

吸水管
Suction pipe

5m/根(5m/pcs)

10m

-

底閥Strainer Valve

2件pcs
